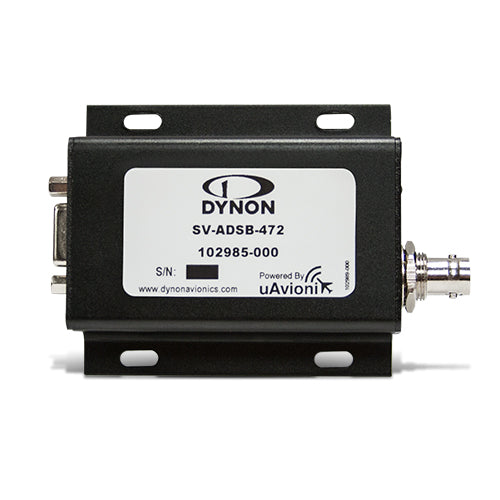

Dynon Skyview Ads-B 472 With 4FT Harness

Note: for use with the Dynon Skyview system only.

Dynons dual band ADS-B receiver receives weather & traffic on both 978 MHz and 1090 MHz frequencies.

The dual band SV-ADSB-472 receives ADS-B traffic via 978 MHz (UAT) and 1090 MHz. In the US, it also receives free text and graphical weather from the FAAs network of ADS-B ground stations. Unlike portable ADS-B receivers, you get FULL ADS-B and radar traffic when you pair this with our Mode-S transponder. The remote mounted receiver utilizes an externally mounted antenna for superior ADS-B reception.

The ADS-B antenna must be installed at least two-feet from the transponder antenna.

ADS-B Weather: Subscription-free weather displayed on SkyView, including NEXRAD radar, METARs and TAFS. Airport weather data can be displayed for nearest airports or for a specific airport identifier.

TFR Information: TFR NOTAMs are displayed graphically on the navigation map.

ADS-B Traffic: Receives ADS-B traffic targets with precise location, altitude, speed, and direction. Includes both traffic broadcast from other aircraft equipped with ADS-B UAT transmitters and data broadcast from ADS-B ground stations. For full FAA 2020 ADS-B mandate compliance, pair this receiver with Dynons SV-XPNDR-261 and SV-GPS-2020 modules for the industrys most affordable ADS-B Out.

Antenna Information: The SV-ADSB-472 requires its own antenna; it cannot share the transponder's antenna. A UAT-specific antenna or a transponder antenna may be used with the SV-ADSB-472.

Please note any ADS-B unit will operate within the USA only when in clear line of sight of an ADS-B tower (flying at a higher altitudes may be required to gain proper signal).
For more information please visit:

To Obtain This Feature:	You Need:
ADSB-B Traffic	SkyView System: 10-03932 or 10-03933 SV-ADSB-472: 10-06419 SV-XPNDR-261/262: 10-04518 or 10-04519
ADS-B Weather and TFR's (US only in current ADS-B coverage areas)	SkyView System: 10-03932 or 10-03933 SV-ADSB-472: 10-06419
TIS Traffic (Non-ADS-B. Available today for U.S in some primary radar coverage areas. SV-ADSB-472 replaces TIS with ADS-B traffic)	SkyView System: 10-03932 or 10-03933 SV-XPNDR-261/262: 10-04518 or 10-04519

Dimensions: 2X6X9
