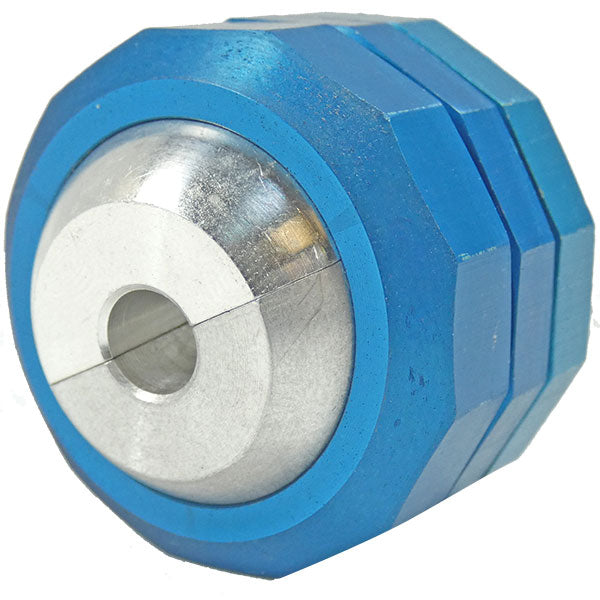

Sphere Alum Grommet .330 .08-.09LB

The A series firewall fitting is all aluminum and requires only one hole in the firewall. It has a 1 inch aluminum ball with a swivel angle up to 50 degrees from straight. It is held on the firewall with one 1 5/16 aluminum nut.

Assembly weighs only 1.3oz-1.5oz (.08lb-.09lb) depending on ball hole size.

Ball hole sizes available are .125, .188, .218, .240, .250, .260, .330, .375, .438 and .500.

Order example: TTP-125A (.125 ball hole)
