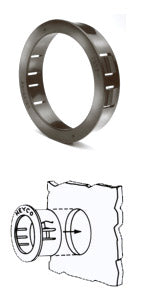

Snap Bushing # 2166

Snap Bushing # 2166

Panel Dimensions				Part Number	UL/CSA Designation	Part Dimensions
Maximum Thickness		Mounting Hole Diameter		Color		A Inside Diameter		B Head Diameter		C Overall Height
in.	mm.	in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.
.125	3,2	1.093- 1.125	27,8- 28,6	2163	SB 1093-14	.875	22,2	1.218	30,9	.453	11,5

SNAP BUSHING # 2163
PN 04-01985

Panel Dimensions				Part Number	UL/CSA Designation	Part Dimensions
Maximum Thickness		Mounting Hole Diameter		Color		A Inside Diameter		B Head Diameter		C Overall Height
in.	mm.	in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.
.125	3,2	1.093- 1.125	27,8- 28,6	2166	SB 1093-15	.937	23,8	1.218	30,9	.453	11,5

SNAP BUSHING # 2166
PN 04-01986

$0.38 - $0.38

$0.38

$0.38 - $0.38

$0.38

Quantity
