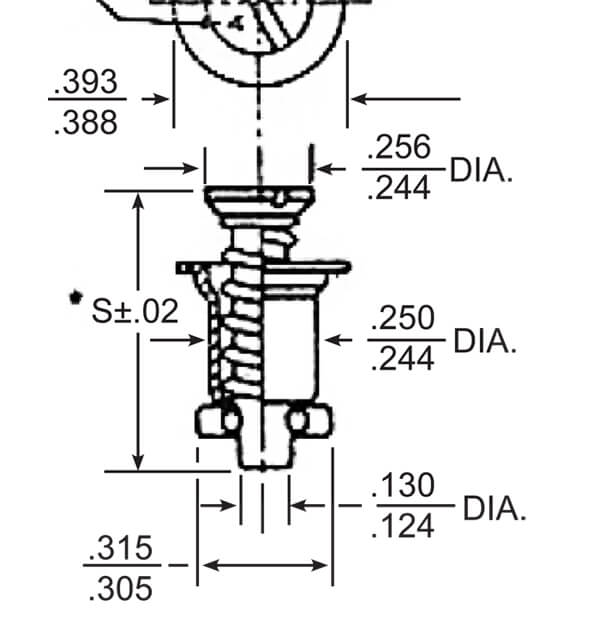

Camloc Fastener 27S3-6

2700 STUD LENGTH SELECTION
Total material thickness G consists of the thickness of all materials to be fastened. This must include the thickness of the material P to which the stud assembly is attached, the material F to which the receptacle is attached plus gaskets (if used) and allowance for paint or other protective finishes. If the total thickness is near the upper limit of the stud grip range, the next longer stud should be used. This will still maintain positive locking of the fastener under vibration.

P (panel thickness)..................... .062
F (frame thickness................... + .062
GRIP (total thickness).............. = .124

STUD SELECTION TABLE Using 212-12 Receptacle
Total Grip Thickness	Use 2700
.020-.059	2700-1
.060-.089	2700-2
.090-.119	2700-3
.120-.149	2700-4
.150-.179	2700-5
.180-.209	2700-6
.210-.239	2700-7
.240-.269	2700-8
.270-.299	2700-9
.300-.329	2700-10
.330-359	2700-11
.360-389	2700-12
.390-.419	2700-13
.420-.449	2700-14

2600, 2700 SERIES RETAINING WASHER Retaining washers are required for studs of -5 length or greater. Use split washer 2600- SW2 where it is desirable to have the stud fall away for minimum internal projection. Use internal tooth washer 2600-LW where it is desirable to retain the stud assembly rigidly.
PN 2600-SW-2	PN 2600-LW

2600, 2700 SERIES RECEPTACLES

Rivet Holes	2600, 2700 Series Part No.
Plain	212-12N
Countersunk	212-12ND
