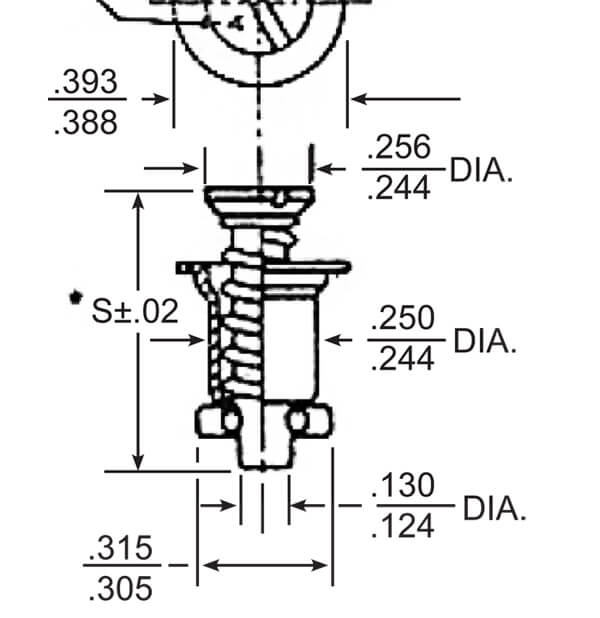

Camloc Fasteners 2700-11 Studs

2700 STUD LENGTH SELECTION
Total material thickness G consists of the thickness of all materials to be fastened. This must include the thickness of the material P to which the stud assembly is attached, the material F to which the receptacle is attached plus gaskets (if used) and allowance for paint or other protective finishes. If the total thickness is near the upper limit of the stud grip range, the next longer stud should be used. This will still maintain positive locking of the fastener under vibration.

P (panel thickness)..................... .062
F (frame thickness................... + .062
GRIP (total thickness).............. = .124


STUD SELECTION TABLE
Using 212-12 Receptacle
Total Grip Thickness
Use 2700
.020-.059
2700-1
.060-.089
2700-2
.090-.119
2700-3
.120-.149
2700-4
.150-.179
2700-5
.180-.209
2700-6
.210-.239
2700-7
.240-.269
2700-8
.270-.299
2700-9
.300-.329
2700-10
.330-359
2700-11
.360-389
2700-12
.390-.419
2700-13
.420-.449
2700-14


2600, 2700 SERIES RETAINING WASHER
Retaining washers are required for studs of -5 length or greater. Use split washer 2600- SW2 where it is desirable to have the stud fall away for minimum internal projection. Use internal tooth washer 2600-LW where it is desirable to retain the stud assembly rigidly.
PN 2600-SW-2
PN 2600-LW

2600, 2700 SERIES RECEPTACLES
Rivet Holes
2600, 2700 Series Part No.
Plain
212-12N
Countersunk
212-12ND
