Carb Heat Repair KIT FG105

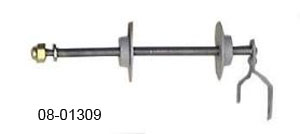

Avglas STC, FAA-PMA repair kits for approved Continetal carburetor heat boxes are now manufactured by McFarlane Aviation. The Teledyne/Continental carburetor heat boxes are made from brazed steel and are used on many of the older light aircraft. Repair kit includes replacement butterfly shaft assembly with detent spring, bearings, bearing housing, complete instructions, locknut and washer. This improved kit has solid alumabronze bearing for better vibration resistance and longer life.

Model FG-100

PN 08-01309
Airbox repair kit includes bearing housings, shaft assembly, and S.T.C. for repair of Continental C75,C85,C90, and O200 airboxes. For airbox s 50256,628122,653675,651534.

Model FG-105

PN 08-01310
Repair kit for the airbox on 6 cylinder Continental O-300. Fits 530852 and 531143 air boxes. Kit includes bearing housings and shaft assembly with S.T.C. for repair.

Dimensions: 2X2X7
