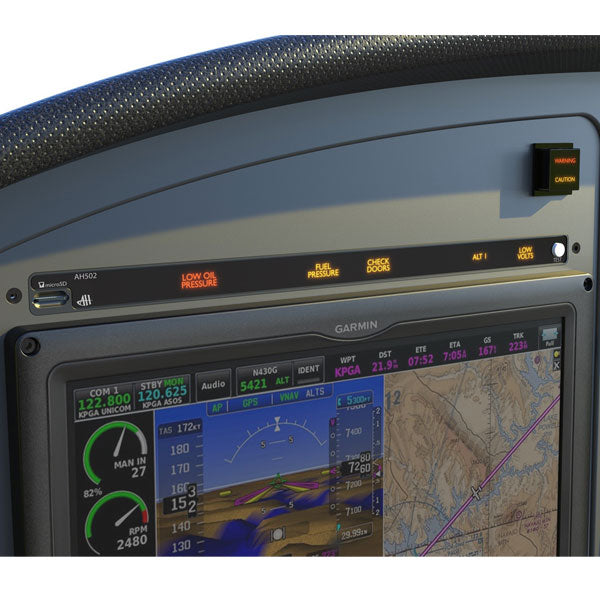

Central Warning Panel 1X8

The AH502sd combines flight, engine and aircraft configuration data to generate voice and visual alerts.

The unit is programmed to warn off against switched, analog and EFIS data inputs based on the switched state, value threshold or combinations of inputs to generate envelope alarms.

Envelope alerts could include oil pressure profiles, speed/ configuration envelopes, gear not down and oxygen alerts.

Data is gathered from directly connected switches and analog inputs as well as being able to take flight and engine data from Electronic Flight Information Systems (EFIS) and Engine Monitors when available via serial buses.

Alerts are mapped to custom voice and/or sunlight readable and auto dimming captions with integration to a remote Master Caution, Master Warning and alert acknowledgment switch.

The front mounted SD card allows for easy adjustment of programming and voice files.

Dimensions: .6X1.4X10.9
