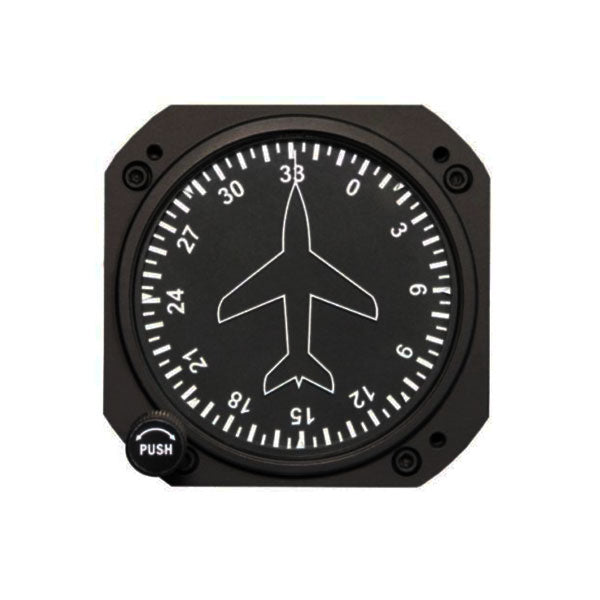

RC Allen Factory O/H RCA11A-8

The RCA-11A series of vacuum directional gyros utilize and air driven precision gyro that controls a vertical rotating azimuth gimbal. The R.C. Allen Model RCA11A has been designed to provide a long life of accurate operation even when subjected to severe operating requirements. This instrument is engineered with a minimum of machined parts, providing lower initial cost and lower maintenance cost through its lifetime.

The RCA11A is non-tumbling within ±85° limits in pitch and roll and can be easily installed in any 3 1/8" panel cut out. Full freedom design allows accurate indication, even after extreme maneuvers. Stainless steel is used at wear points, with aluminum investment and die casting.

A knob is provided to reset the gyro, when compared to the magnetic compass. the RCA11A-8 features the "standard" display.

Meets of exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.
Made in the USA

Dimensions: 6X6X12
