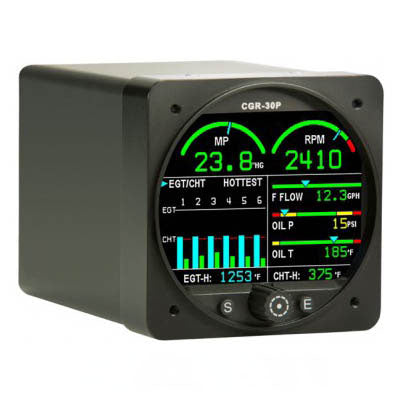

EI CGR 30P Basic Package 8-CYL

EI CGR 30P Basic Package 8-CYL

IMPORTANT: Marking requirement form must be filled out at time of ordering. Please click the link below to download the PDF form. It must be filled out and emailed in before order can be processed.


FAA-Approved Monitor
  • FAA-Approved
  • Primary Replacement STCd, TSOd & PMAd
  • Remove your old engine instruments, including RPM, Manifold, EGT/CHT, Fuel
  • Level, Oil Pressure and more!
  • Upgrade your aircraft panel with the best engine analyzer available.
Easy To Install Instrument
  • CGR-30P fits into your existing 3 1/8″ hole (remove your old tach).
  • Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument.
Accurate, Dependable & Easy To Use
  • Electronics International consistently has been a leader in digital engine instrumentation since 1979.
Data Recording of Every Flight
  • All monitored functions are stored up to three times per second.
  • Up to 1,500 most recent flights stored, downloaded via a USB port.

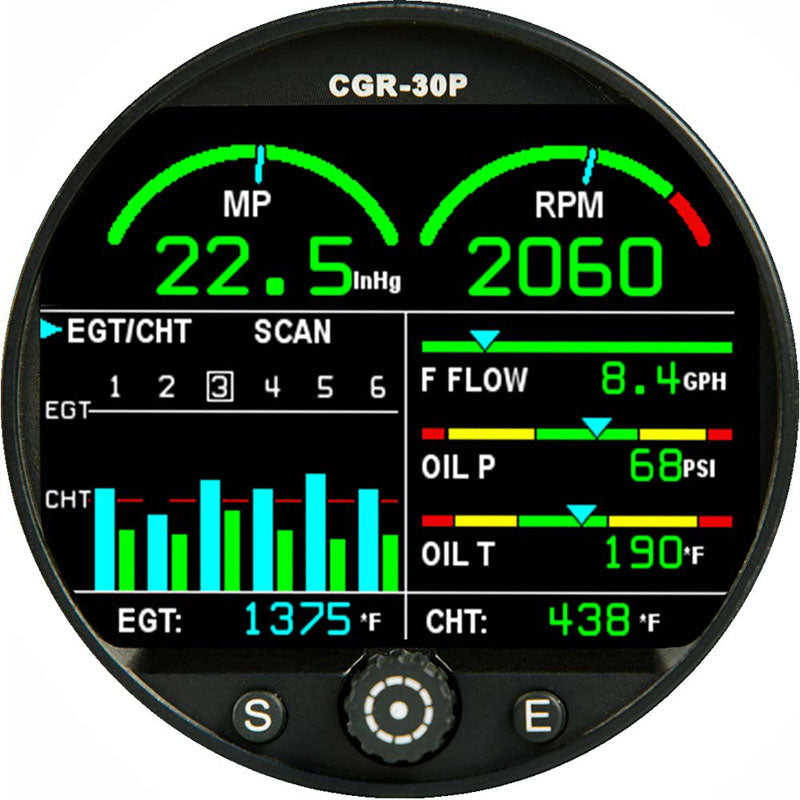

CGR - 30P Main Screen
  • The CGR-30P Premium Engine Monitors Main Screen displays the Tachometer and Fuel Flow in large analog arcs at the top of the instrument, providing immediate and quick reference values. The digital display provides accuracy in monitoring engine functions. The CGR Main Screen also features a complete, primary replacement EGT/CHT Bar Graph Engine Analyzer. Each cylinder is monitored by the CGR. If any EGT or CHT temperature rises above or below-programmed limits, the CGR provides an immediate alert. The EGT/CHT Bar Graph Analyzer features both Lean-of-Peak and Rich-of-Peak Modes for easy engine leaning. The CGR-30P will let you know as each cylinder peaks, at what temperature each cylinder peaks, and how far below Peak Temperature each cylinder is operating. To the right of the EGT/CHT Bar Graph Analyzer, the CGR-30P displays Fuel Remaining, Volts, and OAT.

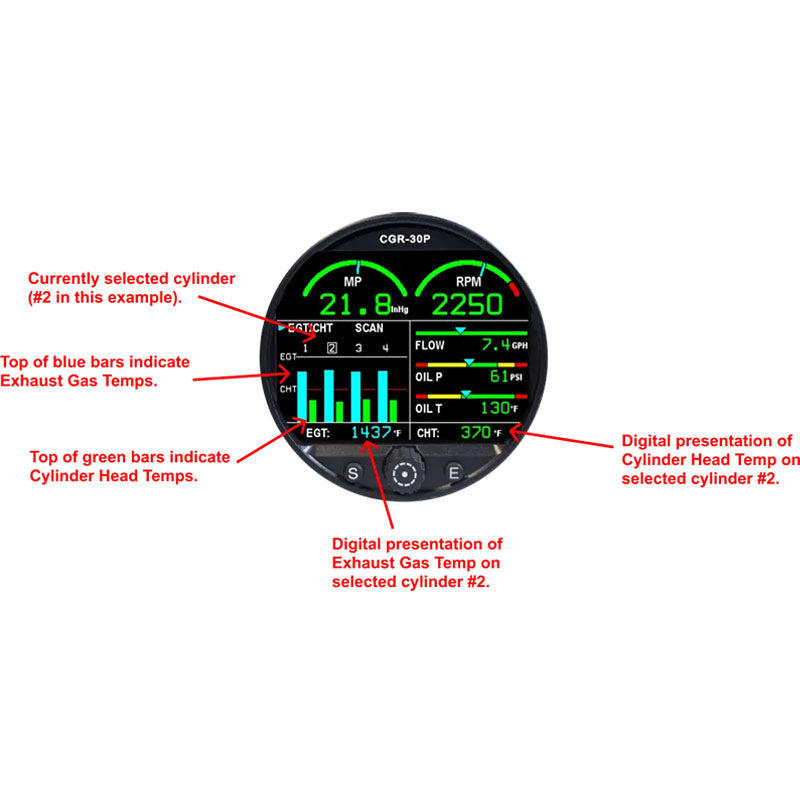

EGT/CHT Bar Graph
  • The CGR-30P Engine Monitor features a state-of-the-art, full-color bar graph to assist with ROP/LOP leaning. Additionally, the bar graph provides both normalized and digital readout screens. No other bar graph in the industry comes close to providing the number of options the CGR-30P offers.
  • The CGR-30P Premium Engine Monitors Bar Graph can be easily Normalized to create a baseline from which to monitor in-flight engine temperature changes. When Normalized, all EGT or CHT bars will be displayed as equal in height. If any cylinders EGT or CHT changes in relation to the other cylinders, that cylinders bar height will no longer be shown at the same height as the others. Such information can be an essential indicator of engine problems.
Easy To Use Learning Mode

Monitor: Lean-of-Peak Mode
  • For Lean-of-Peak Operations, the CGR-30P Premium Engine Monitor informs the pilot as each cylinder peaks, at what temp each cylinder peaks, and how far from peak temp each cylinder is. For quick reference, every cylinders peak information is constantly displayed and tattletale bars are shown above each cylinder, indicating where each cylinder peaked.
  • Fuel Flow is displayed during the entire leaning process to assist in finding the optimal fuel-to-air mixture.
Monitor:Rich-of-Peak Mode
  • The number of degrees below Peak EGT is displayed on the first cylinder to Peak. Fuel Flow is displayed during the entire leaning process to assist in finding the optimal fuel-to-air mixture.

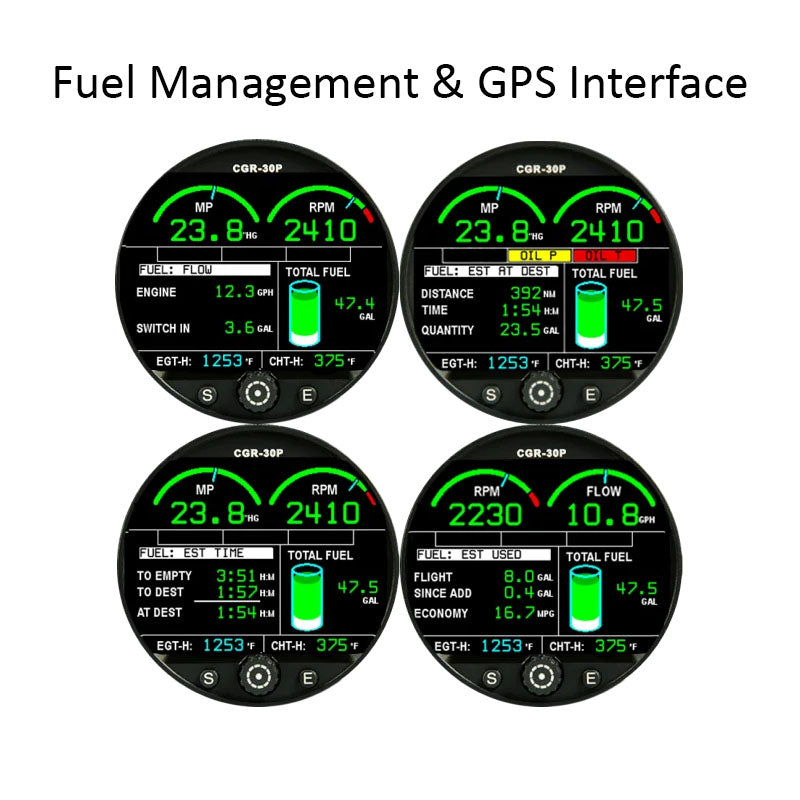

Fuel Management & GPS Interface

CGR-30P Premium Engine Monitors Fuel Management
  • Displays Estimated Fuel Remaining Based on Fuel Flow.
  • Displays Fuel Used for Flight and Since Last Fill-Up.
  • May enable you to extend your flight time using a number of fuel management tools.
GPS Interface
  • Ties into panel or yoke-mounted GPS.
  • Displays distance and time to empty.
  • Stores GPS data in its recorded flight log.
The Fuel Data Screens, on the CGR-30P Premium Engine Monitor, provide six sets of data based on Fuel Flow and GPS information. This data includes Range, Distance to Destination, Range After Reaching Destination, Fuel Remaining, Fuel to Destination, Fuel Reserve, Time to Empty, Time to Destination, Time Reserve, Fuel Used for the Flight, Fuel Used Since Fuel Was Added, Economy (MPGs) and Total Fuel Onboard. Much of this data depends on an RS232 connection to your GPS.

Data Recording
  • Records all functions, every flight, up to 3 times per second.
  • See potential issues before they become major problems.
  • Quickly download data with a USB flash drive.

This screen, on the CGR-30P Premium Engine Monitor, allows you to download Flight Data to a USB flash drive and set the Data Sample Rate. The Data Sample Rate is the time interval between recorded data. The CGR-30P can record up to 1500 flights before it records over the oldest flight first. The USB port may be found mounted in the instrument panel or hanging under it. Flight Data is recorded and downloaded in a comma delimited format. This allows the file to be ported directly into Excel.

CGR-30P Twin Package
Easily replace several of your aircrafts primary and non-primary engine instruments with the Twin CGR-30P Package. The STCd and TSOd CGR-30Ps can replace and consolidate many of your existing primary and non-primary instruments. Each CGR will mount flush through a 3 and 1/8 inch hole and will not protrude from your panel.

Dimensions: 8X11X11

Sold out
$5,268.24 - $5,268.24
$5,268.24
$5,268.24 - $5,268.24
$5,268.24
Request a quote
