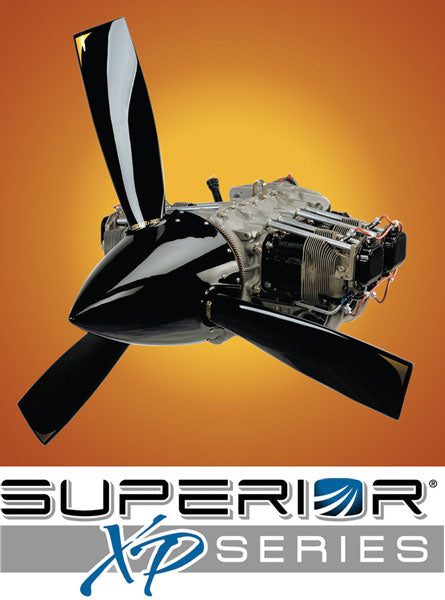

0-360-B1AC2 Superior EXP Roller Lifter Engine KIT

XP Series Roller Lifter Engines

These engine models include fuel pump, fuel system, magnetos, harness, spark plugs, lightweight starter, oil filter adapter, oil filter and updraft cast sump. Prop governor adapter included on constant speed models. Available in Dynafocal #1, Dynafocal #2 and Conical mounting configurations.

Attention: Roller Lifter Engine Kits do not come assembled, assembly required.

	Experimental XP-320	Experimental XP-360	Experimental XP-400
Displacement	320 cubic inches	360 cubic inches	400 cubic inches
Max Continuous Brake horsepower	160 hp standard 150 and 165 available	180 hp standard 170 hp and 185 hp available	215 hp
Compression Ratio	8.5:1 standard 7:1 and 9:1 available	8.5:1 standard 7.2:1 and 9:1 available	8.9:1 standard
Engine Mount Types	Type 1 or 2 Dynafocal or Conical
Propeller Drive	Direct, AS127 Type 2 Modified
Propeller Type	Fixed Pitch or Constant Speed
Weight	285 - 290 lbs depending on model	288 - 297 lbs depending on model	310 pounds
Engine Dimensions (in inches)	O-320 24.6" H x 32.3" W x 32.8" D	O-360 24.6" H x 33.4" W x 32.8" D	IO-400 24.0" H x 34.3" W x 32.8" D
Engine Dimensions (in inches)	IO-320 24.0" H x 32.3" W x 32.8" D	IO-360 24.0" H x 33.4" W x 32.8" D	IO-400 24.0" H x 34.3" W x 32.8" D

Dimensions: 35X43X48

Sold out

$33,404.40 - $33,404.40

$33,404.40

$33,404.40 - $33,404.40

$33,404.40

Quantity
