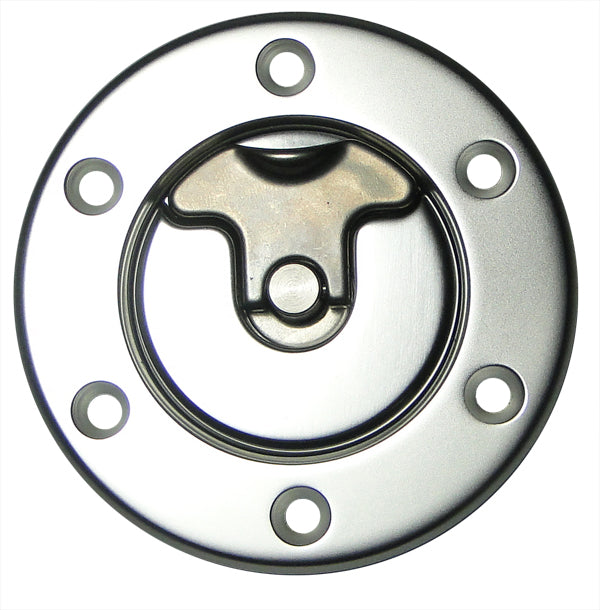

Newton A26S Aero 200 Filler CAP 6 Bolt Flange Non-Locking

The all-metal construction of the Aero 200 Fuel Cap combines strength and lightweight, with a 6 hole flange - To fit directly into tank. Specified for use with many hostile fluids.

Due to the compact dimensions it is not possible to fit a lock to the Aero 200.

Specifications
Options:		No-Lock Only.
Fixing Arrangement:		6 x M5 Countersunk Bolts
Applications:		Fuel, Oil & Water Tanks
Finish:		Anodised Clear (Silver)
Weight:		99.5 g
Supplied with:		(1) Gasket
		(6) M5 x 12mm S/S screws
		(6) Washers
		(6) Nylock Nuts
Materials
Centre-Forging:		Aluminium Alloy 6082
Flange:		Aluminium Alloy 6082/T6
O Ring:		Viton A
Saddle:		Acetal
Dimensions
Outside Diameter A:		80.0 mm
Centre Diameter B:		46.0 mm
Bolt Circle Dia. (PCD) C:		63.5 mm (2.5")
Overall Depth I		26.5 mm
Bore		35.5 mm
Spigot		50.5 mm
Neck Diameter		44.0 mm
Flange Thickness		2.5 mm

Dimensions: 1.5X4X4
