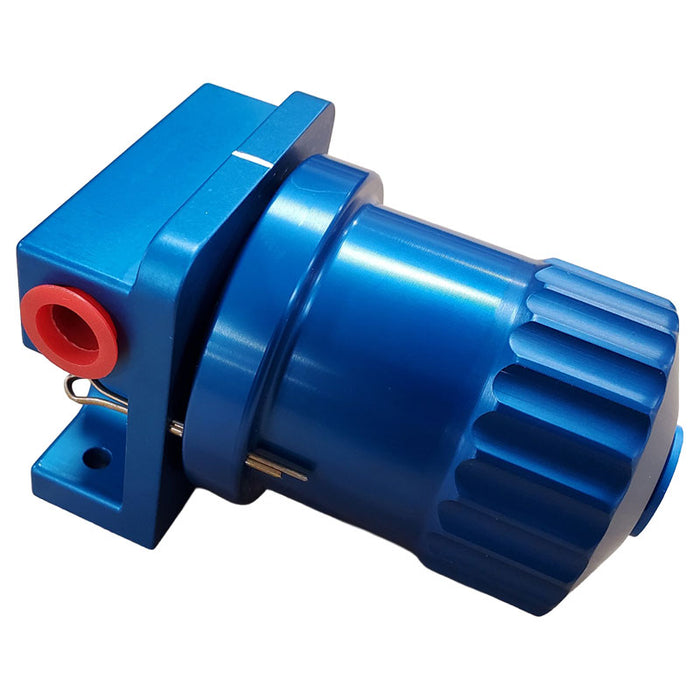

GSM 101-2 Piper Bracket Aircraft Gascolator

Made in the USA! Gascolator uses 1/4" NPT fittings for 3/8" fuel lines. CNC-machined from 6061-T6 aluminum and anodized for corrosion resistance, a positive seal between the bowl and top using a o-ring, the bowl locks in place with no screws but a simple single pin style locking system. This gascolator mounts directly to the firewall with two 3/16 diameter bolts and weighs 11 ounces. The internal screen is 149 microns. The drain port is 1/8" NPT and the primer port is 1/8" NPT. Great for homebuilders.

All fittings and drain plugs will need to be purchased and are not included with gascolator, you will get one 1/4" NPT stainless steel plug so you can choose either a right or left fuel supply line, 1 safety locking pin shown and 1 cotter pin (you can choose your safety method).

8130 Forms are not available for these gascolators. Experimental Only - No FAA approval

Dimensions: 4X4X4
