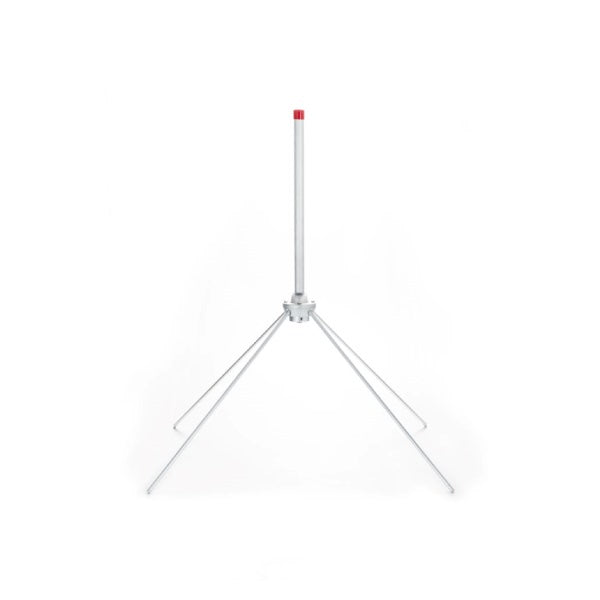

Rami AV-1 Base Antenna Non-Tso

The AV-1 is a base station antenna for comminucations with ground vehicles or aircraft. It has heavy-duty construction with 3/8" diameter aluminum radials, a 1" diameter aluminum tube radiator, and is iridite-treated for durability. It mounts easily to a 1" diameter pipe or a 1-1/4" O.D. tube with locking set screws. A built-in gap-type lighting arrestor is an important design feature. The antenna requires no additional tuning and is designed to withstand windspeeds of up 100 mph.

to download
the Outline Drawing in PDF format.

Dimensions: 4X4X33
