RC Allen 27-3007-1 Torque IND

Our Torque Indicators are a wet line, direct reading bourdon tube type instru-ment, housed in a 2 diameter case. Unit can be calibrated over a wide rage of PSI input to direct read torque. Units can be furnished to your specifications. Indicate needed pressure input and pressure-to-torque conversion. This unit cannot be damaged by oil back up in vent line.

DIMENSIONS:
2 diameter x 2.125 length
Weight: 0.4 lbs
Power: Wet line direct reading pressure gage

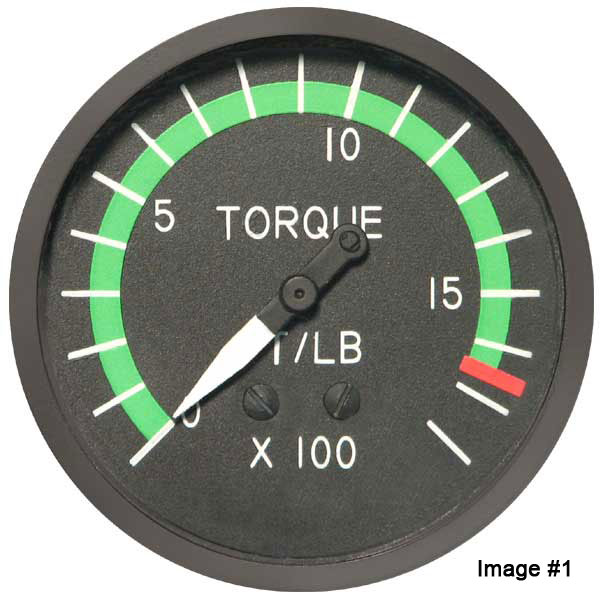

27-3007-1 (Refer to Image #1)
0 to 1800 FT/LB
Green Arc
From 0 to 1628
Red Line at 1628

27-3007-4 (Refer to Image #2)
0 to 75 P.S.I
Green Arc
From 0 to 64.4
Red Line at 64.4

27-2007-5 (Refer to Image #3)
0 to 75 P.S.I.
Green Arc
Red Line at 53 27-3007-7 (Refer to Image #4)
0 to 75 P.S.I
From 0 to 53
Made in the USA
