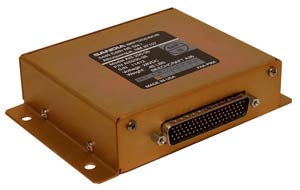

Sandia AIS 200B-35 20 Pole Relay Switching Unit

This is a multi-purpose switching unit. The twenty poles of switching allows all the resolver lines and the steering lines to be switched simultaneously. Internal fail safe switching circuitry ensures that ILS steering is always displayed on the indicator should power be lost to the system or if an ILS frequency is selected in the NAV receiver. Annunciator outputs advise the pilot which system is being displayed on his HSI/CDI. As with the whole AIS family of switching units, units are gold plated dry contacts that are sealed in nitrogen filled cases. The rugged construction makes them ideal switching units for both fixed wing and helicopter operations.

PMA'd and certified to 35,000 feet
