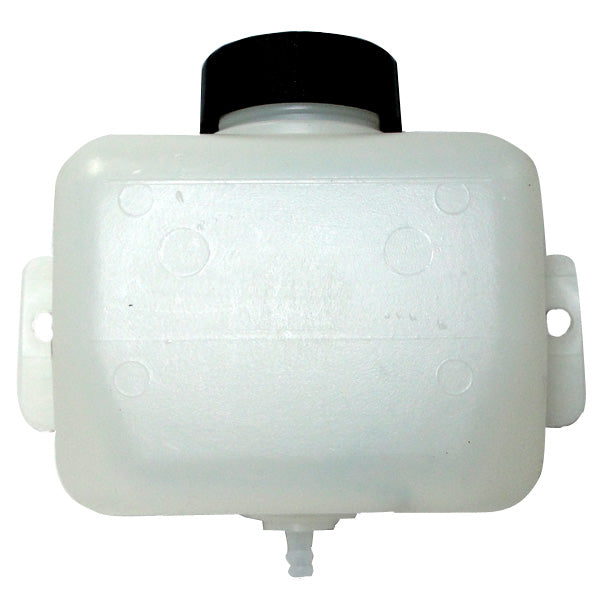

1 QT OIL OR Water Spigot Reservoir W/ LID

Constructed of high density polyethylene, these blow molded multi-purpose tanks offer excellent durability and resistance to most chemical and fluids. Express service tanks come with a cap and straight fittings.

All tanks come with a 2-1/4" buttress thread cap, may require a bulkhead fitting depending on your installation. Please see the accessories section.

All sizes nominal. Height includes neck & fittings. Width includes mounting tabs. Max working temperature is 180-deg F and max working pressure is 5 PSI.

15-06828: 1 Quart 6.21" x 7.74" x 3.62" **Includes 1/4" barb spigot molded on bottom**

15-06830: 1.5 Quart 7.71" x 7.74" x 3.62"

15-06936: 2 Quart 7.04" x 8.632" x 4.173"

15-04841: 4 Quart 11.652" x 8.632" x 4.173"

Dimensions: 8X8X8
