Concorde Sealed Battery RG-641

The RG-641 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

TSO Approval
Superior starting power
Reliable essential power in the event of a generator failure
Low impedance design
Maintenance free
Constructed with non removable vent valves - no addition of electrolyte or water required
Aerobatic: Non spillable at any altitude or attitude
Factory tested to assure airworthiness
Shipped fully charged and ready to install
Manufactured with absorbed glass mat separators (AGM)
RG® Series batteries ship Hazmat Exempt.

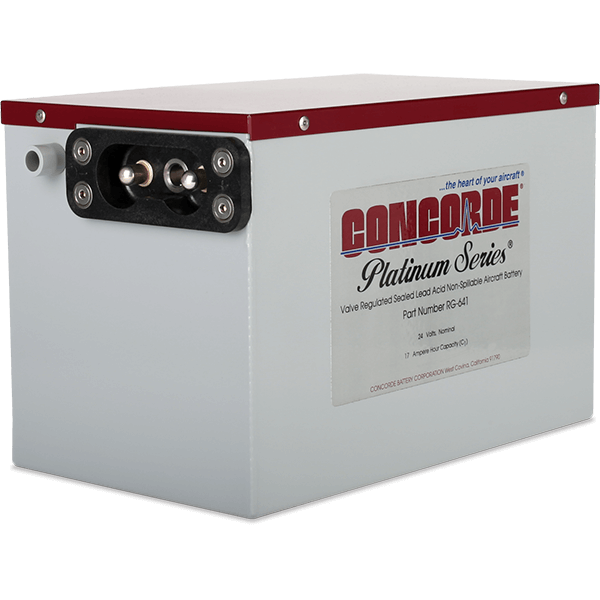

RG-641 is a powder coated aluminum container and cover. Cover is riveted to the container with high retention rivets. MS 3509 receptacle with two perforated vent areas machined into the container. Hold down bars are welded to the container with lifting straps across the top of the cover.

*NOTE* - The STC for some aircraft is available at an additional cost please call 877-4- (777823) if applicable to your aircraft.

Battery Type	Voltage	Ampere Hours	Max. Weight	Our P/N	Battery Diagram PDF
Helicopter and Turbine Aircraft Battery	27	14	42 lbs.	11-12016
