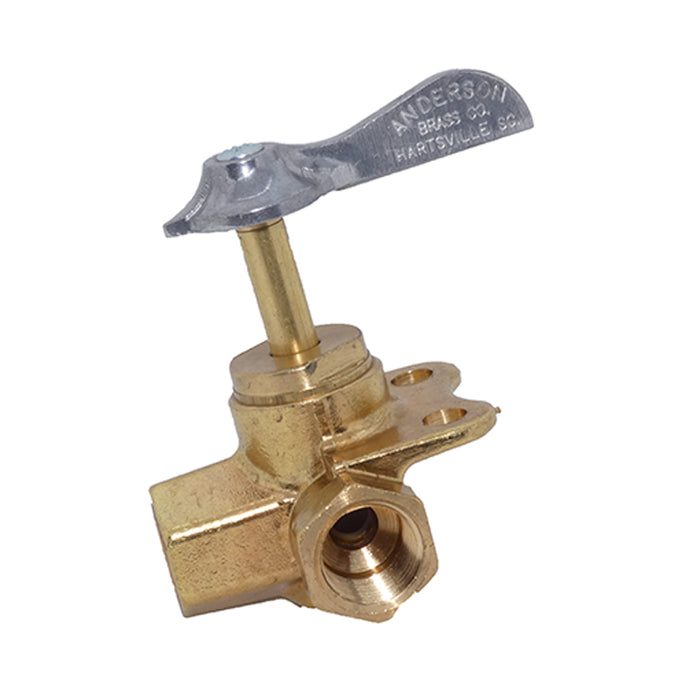

1/4 Female Fuel Valve 4-PORT

A full-flow plug valve with solid bottom and integral mounting bracket. Brass body and plug. Floating stem with O-ring prevents leakage. Packed with synthetic grease which resists gasoline and solvents. Indicating click on 3-port and 4-port valve (CN models) tells when handle is in full open or closed position. Tested to 30 PSI. Not FAA approved. *For 2 tanks. Flow is from either side to branch. **For 3 tanks. Flow is from any side to bottom outlet. Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia. fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes.

* For 2 tanks. Flow is from either side to branch.
** For 3 tanks. Flow is from any side to bottom outlet.
Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes.

Dimensions: .25X1.5X1.5
