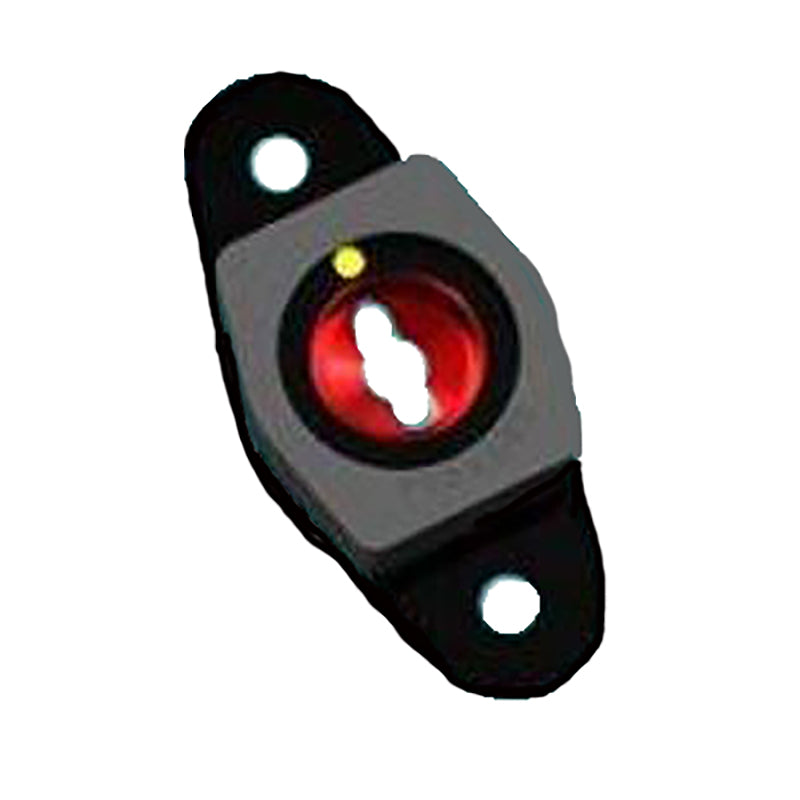

SK2003-24A NON ADJ Platemount
The SK2003A Series Mounts were specifically designed around the latest
generation Cessna/Lord J7444-42 Series Mount. The SK2003-14A, -24A, and -42A
all have the same flex feature as the J7444-42.
Seeing is believing;
The Skybolt product is a vast improvement in overall quality with the
improved features integrated into each dash number. This brings the -14 and
-24 up to the performance level of the -42. The Skybolt SK2003-14A, -24A,
and -42A look and install exactly the same as the Cessna/Lord part it
replaces using the same fastener length. The SK2003-14A, -24A, and -42A are
fixed depth, Non-Adjustable Platemounts.
SK2003-14A
| Cessna Part# J7444-14 Used On - 67-On C150 (10ea), 67-86 C172 (11ea), C172XP (13ea) 68-78 C177 (14ea) |
|||||
| Suggested | Unit Weight | ||||
| Skybolt Part# | Description | Suggested Fastener | SK2003-14A | J7444-14 | |
| SK2003-14A | Southco | 82-19-xxx-20 | .0230Lb 10.4g | .0310Lb 14.0g | |
| Use with standard fasteners: (Length Varies) | |||||
| 82-19-120-20 | Stainless Phillips Stud | ||||
| 82-19-140-20 | Stainless Phillips Stud | ||||
| 82-32-201-20 | Stainless Stud Retainer | ||||
SK2003-24A
|
|
||||
| Suggested | Unit Weight | |||
|
|
|
Fastener |
|
|
| SK2003-24A | Camloc or CLoc® SK27S3 | SK27S3-2S,3S,4S | .0230Lb 10.4g | .0310Lb 14.0g |
|
|
||||
| SK27S3-2,3,4 | Steel Phillips Stud | |||
| SK27S3-2S.3S,4S | Stainless Phillips Stud | |||
| 2600-SW | Stainless Retainer | |||
SK2003-14A
to download the Application in PDF.
Dimensions: 1X1.85X4.25
