Radiant 3-1/8 Lightweight Digital Turn Coordinator With ASI Non-Tso RI-2025-15-TCC

**NOT FAA APPROVED - FOR USE IN EXPERIMENTAL AIRCRAFT ONLY**

Radiant has reworked their original Turn Coordinator to deliver fluid motion, crisp readability, and solid stability across temperature changes. You'll also see an 8-step pilot-selectable dimmer for day, dusk, and night.

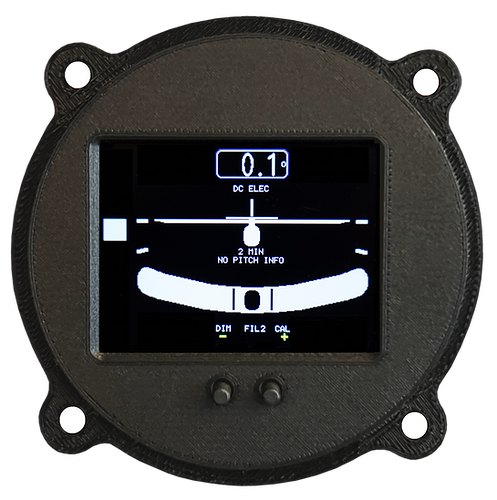

You'll see a daylight-readable color LCD that shows digital yaw rate (deg/sec), a central aircraft symbol for turn direction, and a bubble-style roll inclinometer for coordination.

It delivers crisp, high-contrast graphics, automatic dimming, and rock-solid reliability in a compact 2¼" package now also available in a 3⅛" format for standard panels. No vacuum system, no moving parts, no drama. It gives you modern, solid-state turn information in three flexible formats:

• 2 1/4" Panel Turn Coordinator
• 3 1/8" Panel Turn Coordinator

These are both ship-powered panel-mount units designed to drop into standard instrument holes as a modern replacement for legacy vacuum or electric gyros. They have the same internals, just different bezel sizes.

Both share the same solid-state sensor core, neon-blue LCD graphics, and a clean two-button interface, so once youre familiar with one, the others feel instantly natural.

How it compares (past generation to now)

• Motion: it was stepwise; now it's silky.
• Legibility: better, smoother appearance in every detail.
• Stability: tighter temp comp.
• Configuration Options: Set the Gyro rate as ultra-fast to molasses slow & smooth.
• 8-step pilot-selectable dimmer for day, dusk, and night.

See our New SafePanel!
Looking for a mini glass panel with Turn Coordinator, Altimeter, VSI, and optional ASI (0220 kt / 0250 mph)? See our Mini Glass SafePanel instruments.

We're introducing our new Mini Glass SafePanel, which uses the same core products as the Turn Coordinator, but adds an Altimeter and a VSI to our Turn Coordinator (2 1/4" and 3 1/8") versions, with backup battery that runs when ship power is dead!

This is a great value for home builders and an excellent choice to install beside far more expensive, high-dollar glass instruments as a backup. This product is designed for use in experimental, ultralight, and Light Sport aircraft (with manufacturer approval).
