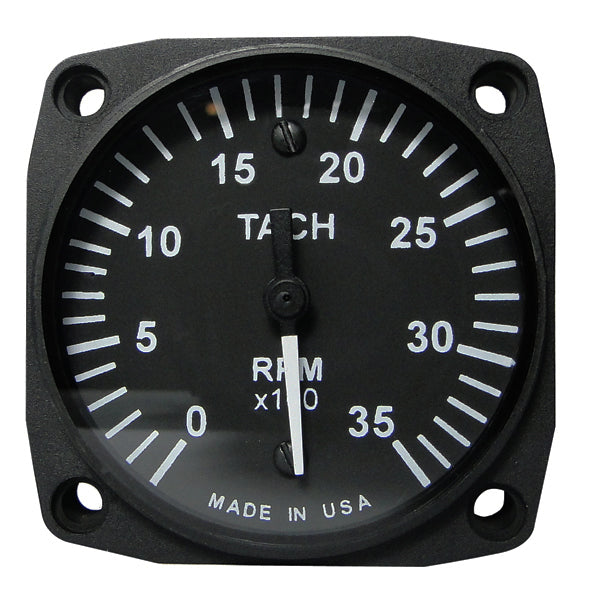

UMA 2-1/4. Electric Tachometer 0-3500 RPM Slick 4C Sender NON TSO

These 2-1/4" tachometers were designed to offer aviation styling and performance for all types of aircraft. These tachs have high resolution and easy to read displays. The analog model has a 270° sweep which provides great resolution in both the 3500 and 7000 ranges. The digital model has a bright LED display. Separate power source required. Installation is simple. If using mag pickup 1A9-1 or 1A9-2, remove vent screw-cap from magneto and screw in one of this mag sensors. Connect power to the tach and plug in DB-9 connector into the tach. If using 1A3-4 sender that goes into mechanical port, just install it there, connect 4 pin connector to the sender and DB-9 connector to the tach and connect power leads to the aircraft fuse box. Instructions included.

Lycoming/Continental
(to replace mechanical tachs)
Current: 80 milliamps ­ Size: 2.25" round x 2.75"deep

Magnetic pickup (6 ft. cable length) included with P/N's 10-02141 and 10-02140 (T1A9).

6 ft. harness, sending unit, and .156 diameter tang adapter included with P/N 10-00083 (1A3-4).

Dimensions: 2.5X2.5X5.5
