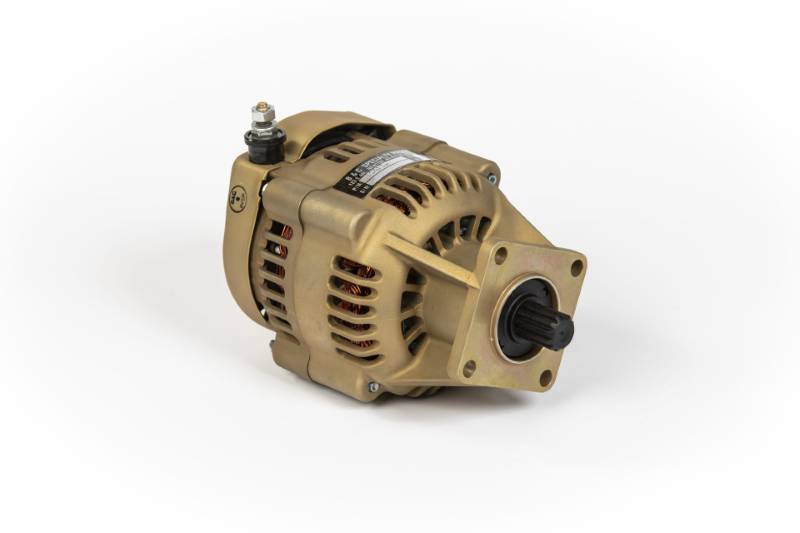

B&C BC410-H Alternator Spline Driven 20-30 Amp With SB1B-28 28V Homebuilt

BC410-H Alternator The BC410-H is a high-performance spline-driven alternator that mounts on a standard vacuum pump accessory pad (AND20000). It may be used either as a primary or a stand-by alternator for a rated output of 20 40 amps @ cruise RPM. Constructed of all NEW materials (with absolutely NO remanufactured content), the BC410-H is designed for durable service, with heavy-duty sealed ball-bearings, two cooling fans, a dynamically balanced rotor, and a special shear section designed into the drive coupling. Measuring 4.6″ wide and 6″ deep, and weighing only 5.75 lbs., the BC410-H will clear the tachometer cable and oil filter on stock Lycoming engines.

The BC410-H is available for both 14 volt and 28 volt applications, and is externally-regulated. It should be appropriately matched with our LR3D, LS1B, or SB1B Controllers (depending on your application and electrical system configuration).

NOTE:
L-40, BC460-H, BC410-H, and BC462-H alternators require external regulators - use: P/N 07-06742 (LR3C) for 14V Primary, P/N 07-06786 (LS-1A) for 28V Primary, P/N 07-03461 (SB1B-14) for 14V Standby, and P/N 07-03462 (SB1B-28) for 28V Standby.

Dimensions: 8X9X10
