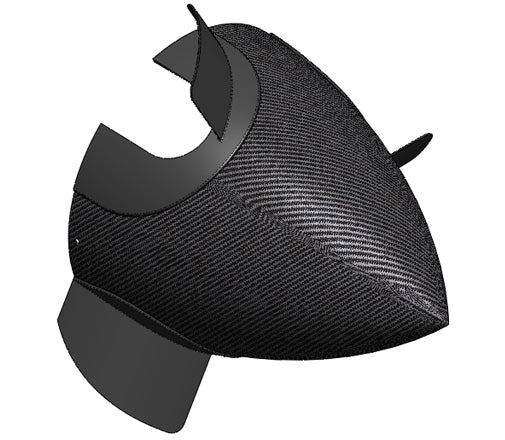

DUC Turbo Deflector 210MM 01-70-009

Realized entirely out of carbon fibers, the Turbo spinner DUC 08.3" and 09.8" were studied and developed to support the cooling of the engine.
Very adapted in the case of engines with air cooling, it limits the variations in temperature engine between takeoff to full mode and the flight in cruising, but also in statics or on a taxiway.
Adaptable to any type of engine generating a slight overheating regardless of its direction of rotation (Rotax, Continental, Limbach...), it is oriented for use on 4-stroke engines.

In two-bladed or three-bladed version, the carbon fiber deflectors were placed around each foot of blade to allow an air admission in the entries of the engine cowling in statics and dynamics.
These deflectors adapt perfectly on the DUC spinner 08.3" or 09.8".
The mounting plate, out of carbon fibers, is produced with the Carbone Forge® process for a higher mechanical resistance.
