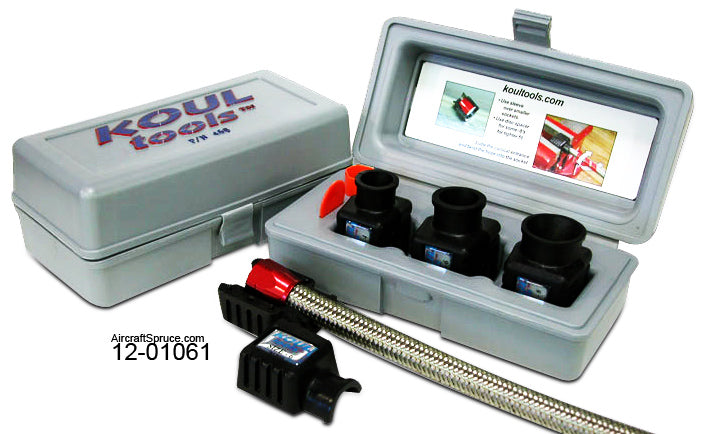

Koul Tool - Large Kit #1016

SMALL KIT
The Small kit contains the capsules to install -4, -6, -8 hose into their respective sockets. To accommodate all the different manufacturers fittings, spacers and sleeves are required to tighten up the some of the sockets within the capsule. For the tool to perform at its best, the socket needs to be a snug fit in the funnel. The two spacers are used in some -6s and 8s. If the socket seems loose in the tool, use a spacer to tighten it up. In the small kit, only the Russell -4 needs a sleeve. Not for use with Teflon style hose.

LARGE KIT
The Large kit contains the capsules to install -10, -12, -16 hose into their respective sockets. To accommodate all the different manufacturers fittings, spacers and sleeves are required to tighten up some of the sockets within the capsule. For the tool to perform at its best, the socket needs to be a snug fit into the funnel. In the 1016 kit, all the -16s except Russells require the sleeve and a rear spacer. See the instructions in the case for the proper spacer number. Most of the -10s and 12s* will use a spacer. Not for use with Teflon style hose. * -12 is a stainless washer.
