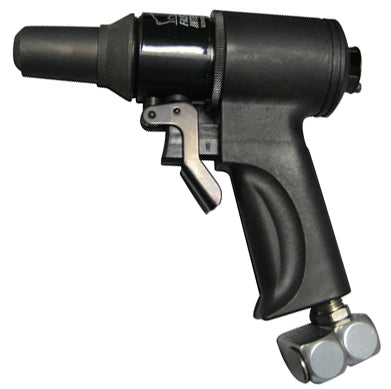

Pt-100-1 Pneuhyd Blind Riveter

The PT-100-1 power riveter, no larger than a compact drill motor, will install virtually any straight-pull blind rivet with installation loads of 3500 lbs. or less. All blind rivets from 3/32" dia. up to and including 1/4" dia. CherryMax rivets can be installed with the P-100-1. It utilizes a patented two-valve hydraulic pump actuated by 90 to 130 PSIG air pressure. Unlike most riveters, the P-100-1's collect/jaw assembly remains stationary while the outer sleeve-nosepiece assembly is hydraulically moved, creating sufficient load to install the rivet. Furnished with three nosepieces for 3/16", 3/32", 1/8"& 1/4" rivets. Wt. 29 oz.

Dimensions: 2.5X8X12
