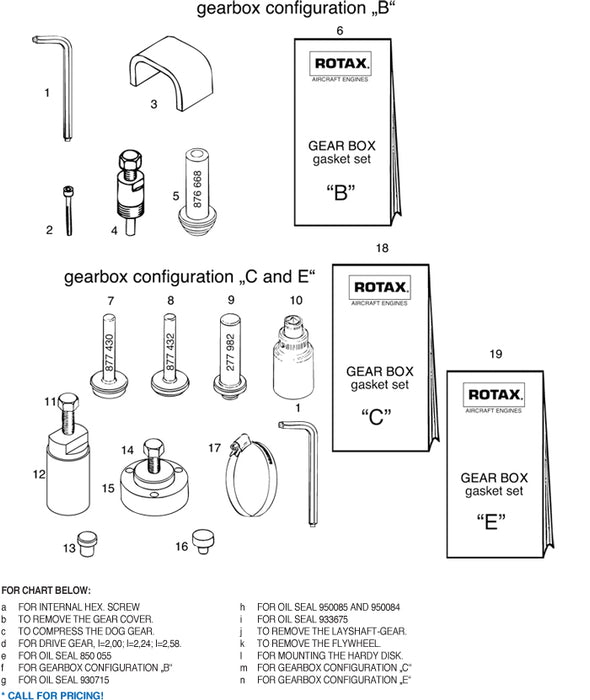

Rotax 876-668 Insertion JIG Assy.
- a for internal hex. screw
- b to remove the gear cover.
- c to compress the dog gear.
- d for drive gear, I=2,00; I=2,24; I=2,58.
- e for oil seal 850-055
- f for gearbox configuration B
- g for oil seal 930-715
- h for oil seal 950-085 and 950-084
- i for oil seal 933-675
- j to remove the layshaft-gear.
- k to remove the flywheel.
- l for mounting the hardy disk.
- m for gearbox configuration C
- n for gearbox configuration E
Explanations of symbols and statements in charts:
- N = Newly introduced
- s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
- AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same . Use individual part descriptions to determine the proper length needed.
- n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
- CALL = Please call for price, 800-247-9653
Original price
$146.34
-
Original price
$146.34
Original price
$146.34
$146.34
-
$146.34
Current price
$146.34
