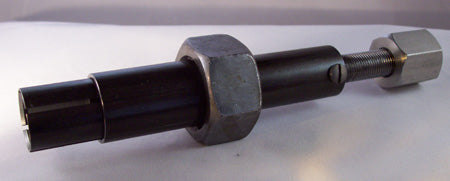

S4-2 Race Removal Tool

The S4 magneto drive end inner race removal tool works in conjunction with a standard bearing puller. The split gripper ring fits behind and around the race and is captured in the puller ring by 2 opposing set screws. A groove on the puller ring provides the point of attachment for the puller arms.

Notes:

• Review the Installation Drawing before installation.
• Unit is non-returnable if instructions are not followed.
