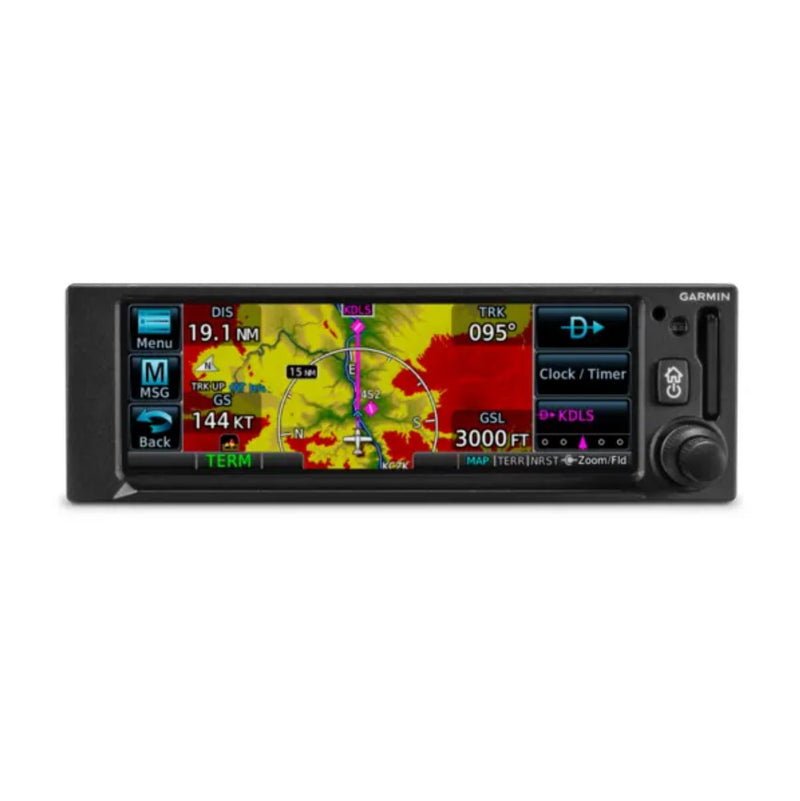

GPS 175

Notice: this product available for United States only.

For other countries see GPS 175


PART NUMBER 010-01822-50


LPV Approaches, Priced for Your Aircraft
  • Slim, all-in-one touchscreen GPS navigator for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft
  • Take advantage of WAAS GPS navigation with LPV approaches, which offer minimums as low as 200’ to greatly expand your operational capability
  • Pairs with select Garmin flight displays, or integrates directly with your existing course deviation indicator (CDI) for cost-effective installation¹
  • Visualize your entire flight plan, including departures, arrivals, instrument approaches, holding patterns and more on a rich, dynamic global moving map
  • Wirelessly transfer flight plans and stream weather, traffic, GPS position and backup attitude via built-in Connext® technology to the Garmin Pilot™ app and more
Sold out
Original price $5,695.00 - Original price $5,695.00
Original price
$5,695.00
$5,695.00 - $5,695.00
Current price $5,695.00
Request a quote
  • Overview
  • Specs
  • Interfaces
  • LPV Approaches, Priced for Your Aircraft

    • Slim, all-in-one touchscreen GPS navigator for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft
    • Take advantage of WAAS GPS navigation with LPV approaches, which offer minimums as low as 200’ to greatly expand your operational capability
    • Pairs with select Garmin flight displays, or integrates directly with your existing course deviation indicator (CDI) for cost-effective installation¹
    • Visualize your entire flight plan, including departures, arrivals, instrument approaches, holding patterns and more on a rich, dynamic global moving map
    • Wirelessly transfer flight plans and stream weather, traffic, GPS position and backup attitude via built-in Connext® technology to the Garmin Pilot™ app and more

    Big capabilities come in a small package with the GPS 175 navigator. With its bright, clear high-resolution touchscreen display, you can have the advanced navigation functions you’ve always dreamed of. Entering flight information is a cinch, and accessing every function is fast and easy. It’s equally at home in certificated aircraft or an experimental aircraft. And it’s the same 2” height as older navigation equipment and can allow you to keep the legacy composite CDI already in your aircraft to minimize installation cost¹. That makes GPS 175 the smart, affordable way to add next-generation navigation to your favorite airplane.

    Perfect Touch

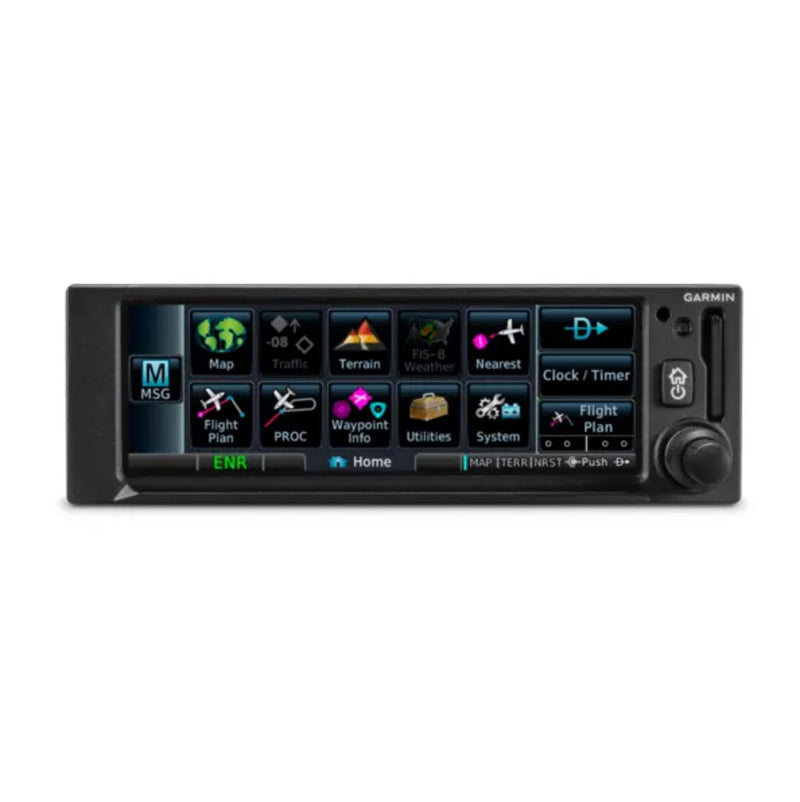

    The moment you power up GPS 175, you’ll see a familiar Garmin homepage on the 4.8” display, which puts the most important functions within only a few touches. Navigate to dedicated pages for the moving map, terrain, nearest airports, flight plan, procedures, waypoint information, utilities and more. With shortcuts available to the flight plan and Direct-to functions on almost every page, navigation features are usually just a tap away. Use your finger to pan and zoom on any map, traffic and terrain page. Enter waypoint data with the on-screen keyboard. And touch the home button to get you back to the main page at any time.

    For added control stability in flight, a shelf across the lower edge of the display serves to steady your hand in smooth and turbulent flight conditions. And if you prefer traditional controls, the concentric knobs provide yet another way to control many of the GPS 175 navigator’s functions.

    Perfect Touch

    Intuitive Navigation

    With GPS 175, building and modifying flight plans is simple. As you enter waypoints, our FastFind feature automatically begins searching for the nearest identifier as soon as you start typing, so — in most situations — a press or 2 reveals just what you were thinking. You can also create holds, insert Victor airways and corresponding exit options, and add departures, arrivals and instrument/visual approach procedures. Additionally, you can edit your route using the map screen; a handy "rubber band" feature lets you grab any leg of your flight plan route  and move it to accommodate a deviation or ATC amendment to your flight plan.

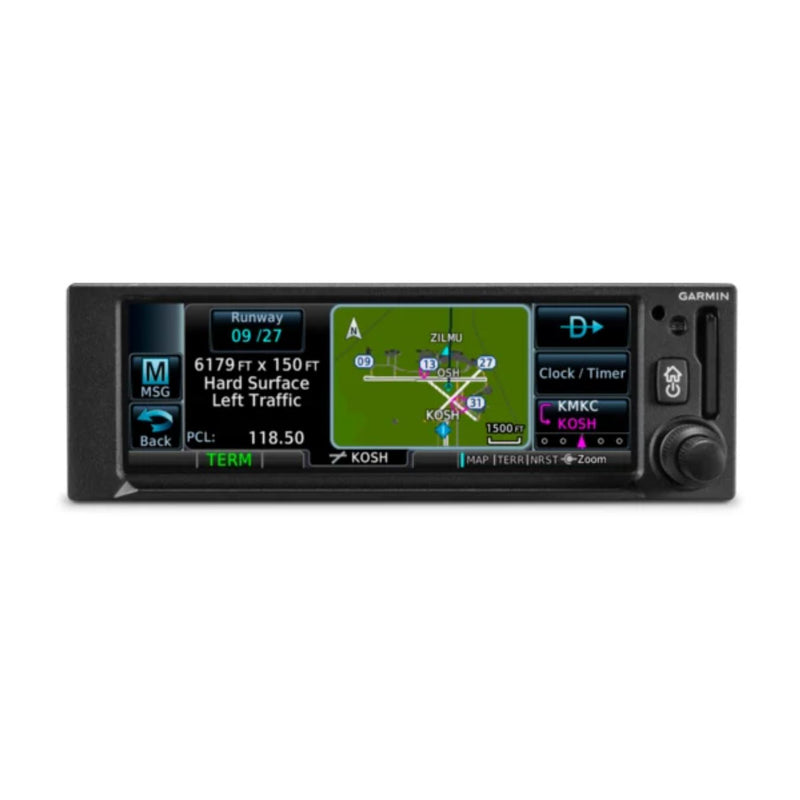

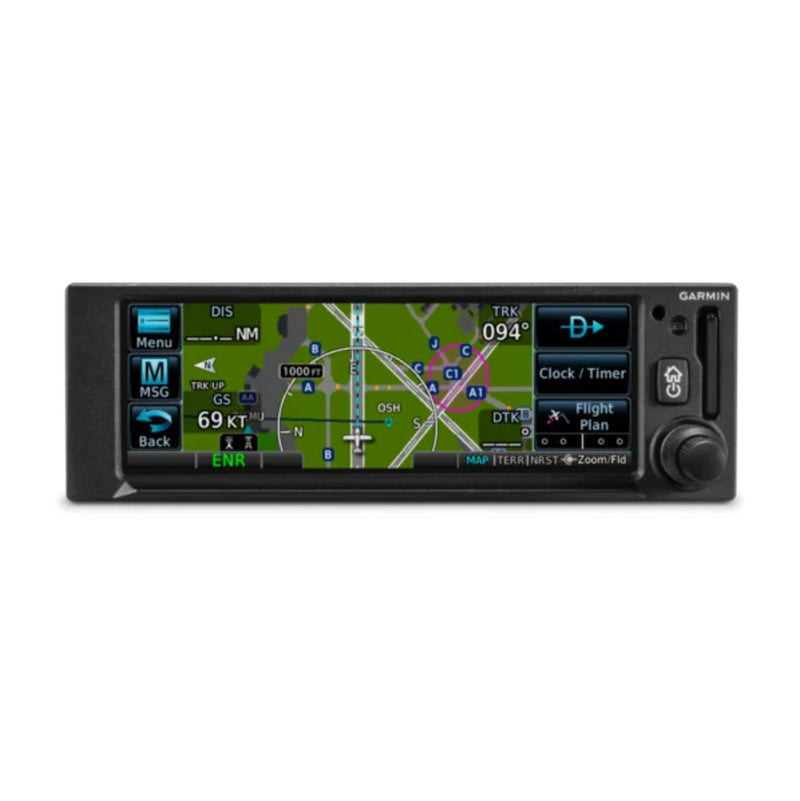

    A variety of dynamically drawn and displayed maps provide situational awareness and context to the flight plan by highlighting visual reporting points, navaids, SafeTaxi® diagrams and hazards such as obstacles, power lines and terrain. Plus, the Smart Airspace™ feature automatically highlights airspace close to your current altitude and de-emphasizes airspace away from the current altitude.

    Intuitive Navigation

    Advanced Approach to IFR

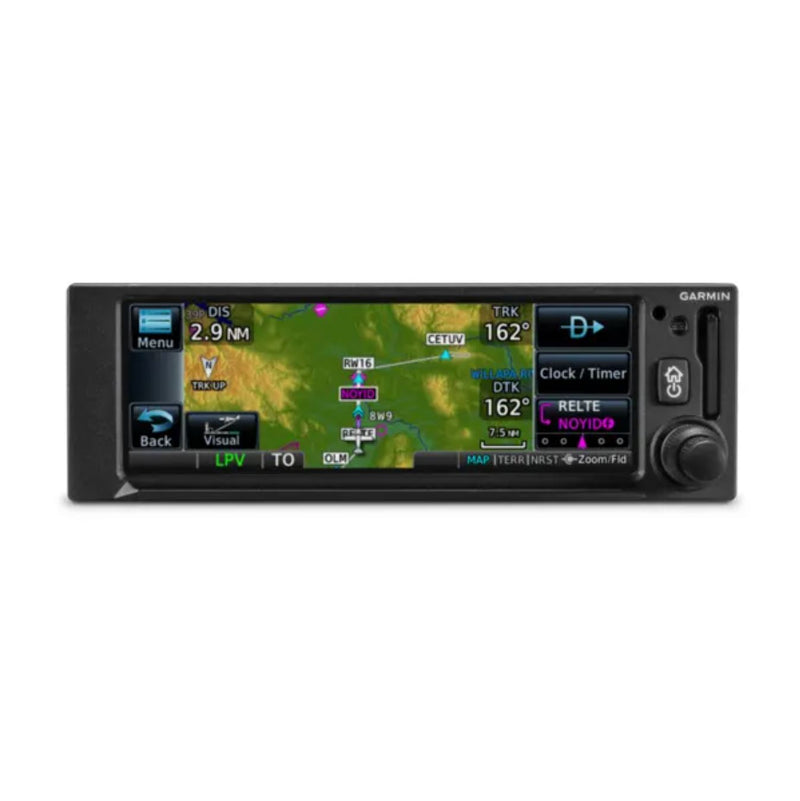

    The SBAS/WAAS-certified GPS receiver can allow you to fly GPS-guided LPV glidepath instrument approaches down to as low as 200’, greatly expanding your operational capability. You can also access newer localizer performance (LP) and all area navigation (RNAV) approaches. Precise course deviation and roll steering outputs can be coupled to GFC™ 500 and GFC 600 autopilots as well as select third-party autopilots so that IFR flight procedures such as holds, NextGen radius-to-fix (RF) legs and missed approaches may be flown automatically. In addition, the GPS 175 navigator lets you create and execute custom holding patterns over an existing waypoint or user-defined waypoint.

    Plus, when operating in VFR conditions, GPS 175 can provide advisory vertical approach guidance based on a published glidepath angle or a 3-degree approach glideslope from the runway threshold, while considering terrain and obstacle clearance. With this advisory guidance, you’re able to fly more consistent, precise vertical glidepaths into a variety of airfields.

    Advanced Approach to IFR

    Add ADS-B Traffic and Weather

    When paired with dual-link Garmin ADS-B solutions, such as GTX™ 345 series transponder or GDL® 88 universal access transceiver, GPS 175 can display ADS-B traffic targets as well as subscription-free ADS-B weather data in the U.S. Or you can opt for the GNX™ 375 navigator, which offers the same capabilities as GPS 175, but includes a transponder for ADS-B “Out” and “In.” The ADS-B weather link provides in-flight access to animated NEXRAD imagery, METARs, TAFs, winds and temperatures aloft, PIREPs, NOTAMs and more.

    When equipped with a compatible ADS-B solution, visual alerts help you recognize and avoid potential conflicts in busy airspace. Our patented TargetTrend relative motion technology offers a faster, more intuitive way to judge the direction and closure rate of intruding targets in relation to your aircraft’s position. For example, if traffic is ahead of you and traveling along the same track but at a slower rate, the motion vector would point opposite of its indicated direction of flight to show you are overtaking the traffic. And, at the start or end of each flight, TerminalTraffic™ technology provides the most comprehensive picture of ADS-B equipped aircraft and ground vehicles in the airport environment. ADS-B equipped aircraft in-flight are easily distinguished from ground vehicles and taxiing aircraft, which are displayed using distinct colors and symbols. All information is presented on a simple, easy-to-understand SafeTaxi diagram with reference to runways, taxiways, hangar locations and more.

    Add ADS-B Traffic and Weather

    Cockpit Integration

    The GPS 175 navigator interfaces with a variety of Garmin flight displays, including G3X Touch (experimental and certified), G5 (experimental and certified), G500/G600, G500 TXi/G600 TXi as well as select third-party displays¹. Plus, it’s also compatible with many legacy, composite-input based CDIs — allowing you to keep your existing CDI and have an easier, more cost-effective installation¹.

    And for even more work-saving convenience, you can use the built-in Connext technology to stream information between GPS 175 and compatible Garmin portables and mobile devices running the Garmin Pilot or FltPlan Go apps. You can create flight plans at home and upload them at the airport. And you can stream GPS data and backup attitude information (from the built-in AHRS) to your mobile device or Garmin portable, making them even more useful cockpit companions. Better still, you can also share ADS-B traffic and weather information if you’re equipped with a compatible ADS-B solution.

    Plus, optional Flight Stream 510 installs in the memory card slot of GPS 175 to enable our Database Concierge database transfer and management capabilities via our Connext gateway. At home, you can download selected databases onto your mobile device by using the Garmin Pilot app. Then, once you get to the airport, Flight Stream 510 will automatically establish a wireless connection to the Garmin Pilot app and upload the databases from your device to your GPS 175 in minutes.

    Cockpit Integration

    Learn More About GPS 175

    With installation approval available for hundreds of Part 23 Class I/II aircraft models, adding a GPS 175 navigator to your cockpit is a straightforward, all-bases-covered proposition. To better familiarize yourself with the system, a free training app is available for iPad® mobile devices on the App Store®. And for worry-free flying, it comes with an industry-leading 2-year warranty, backed by our award-winning product support team. See your authorized Garmin installation center for more information on scheduling a GPS 175 upgrade for your aircraft. And experience the navigation capabilities your aircraft has been missing.

    ¹See interfaces tab to verify compatibility

    iPad and App Store are trademarks of Apple Inc., registered in the U.S. and other countries.

  • Physical and Performance

    • TSO applicability: C146e Class 3; C157b Category 1; C165a; C195b Category B1, B3, B5, B7
    • Display size: 4.8" (122.5 mm) diagonal
    • Display resolution: 732 pixels (W) x 240 pixels (H)
    • Unit bezel height: 2.02" (51.0 mm)
    • Unit bezel width: 6.25" (159.0 mm)
    • Unit depth with connectors: 6.58" (167 mm) (measured from face of aircraft panel to rear of connector backshells)
    • Unit weight: 1.3 lbs (0.6 kg)
    • Maximum altitude: 35,000 ft
    • Input voltage range: 9 VDC - 33 VDC
    • Maximum display brightness: 260 fL
    • Operating temperature range: -20° C to 55° C (-4° F to 131° F)
    • Bluetooth version: 4.2
    • Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
    • LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
    • Maximum velocity: 1,000 knots (above 60,000 feet)
    • Position update Interval: 0.2 sec (5 Hz)
  • Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

    Interface

    Manufacturer

    Model

    Autopilots

    Honeywell (Bendix/King)

    KAP 100/140/150, KFC 150/200/250

    KFC 225/275/325

    Century

    I/II/III/IV, 21/31/41, 2000, Triden

    AK 1081 [1]

    S-TEC

    System 20/30/40/50/55/60-2/60 PSS/65

    System 55X

    ST-901 [1]

    Cessna

    300B/400B/800B

    300 IFCS/400 IFCS

    Garmin

    GFC 500

    GFC 600

    Navigation Indicators

    Garmin

    GI 106/106B (IFR)

    GI 102/102A (VFR)

    Honeywell (Bendix/King)

    KI 204/209/209A (IFR)

    KI 203/208/208A (VFR)

    KI 206/209A/525A,
    KPI 552/552B/553/553A/553B (IFR)

    KI 202/208A (VFR)

    ARC (Cessna)

    IN-386A, IN-481AC (IFR)

    IN-385AC (VFR)

    Century

    NSD 360A, NSD 1000 (IFR)

    Collins

    331A-6P, PN-101, IND-351D (IFR)

    S-TEC

    ST 180 (IFR)

    Mid Continent

    MD222-406, MD200-306, MD200-307 (IFR)

    MD222-402, MD200-302, MD200-303 (VFR)

    Narco

    VOA 9/50M (IFR)

    VOA 8 (VFR)

    EFIS Displays

    Aspen

    EFD 1000/500

    Garmin

    G500/G600

    TXi Series

    G5 (ADI)

    G3X Touch

    EHSI Displays

    Garmin

    G5 (HSI)

    Sandel

    SN 3308

    SN 3500/4500

    Heading Reference Sources

    Aspen

    EFD 1000

    Garmin

    GAD 42

    G500/G600

    TXi Series

    Sandel

    SN3500

    SN3308

    Multifunction Displays

    Garmin

    GMX 200

    MX20

    Datalinks

    Garmin

    GDL 82

    GDL 88/88D

    Transponders

    Garmin

    GTX 327

    GTX 328

    GTX 330/330D

    GTX 330/330D w/ES

    GTX 335

    GTX 345

    Connext® Compatibility

    Enabled with BLUETOOTH® wireless technology.

    aera® 796/795/660

    Garmin Pilot™

    FltPlan Go

    Backup Attitude

    X

    X

    X

    GPS Position

    X

    X

    Flight Plan Transfer

    X

    X

    X
